PAM Essentials allows you to use OneLogin's existing IdP tools and integrations to set up simple, easy-to-use platform access that users and admins can make the most of without requiring extensive technical know-how. Our proprietary technology simplifies the complex process of privileged access management (PAM) into role-based access policies, eliminating the need to configure VPNs and define subnets, and reducing the risks and vulnerabilities that can come from human error.
Instead, your PAM configuration with OneLogin can be up and running in under an hour with the process described in this guide. Using our secure network access connection, as well as powerful auditing features like full session recordings, your organization can dramatically improve security while still ensuring that your privileged users have easy access to the servers and systems they need.
Related Documentation
Connecting to PAM Essentials
-

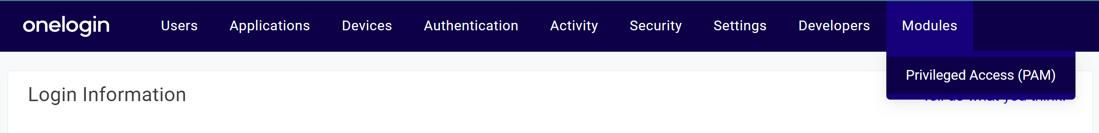

In your OneLogin admin portal, go to Modules > Privileged Access (PAM).
-

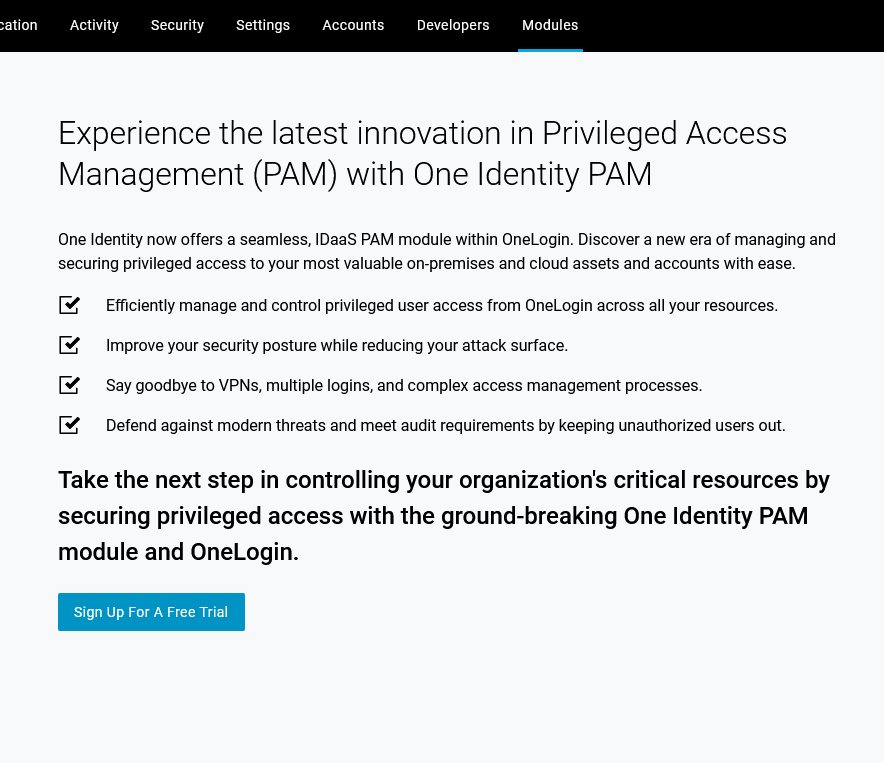

When prompted, Sign Up For A Free Trial to connect with PAM Essentials. A dialogue confirms that the module has been enabled and provides a brief overview of the PAM portal.

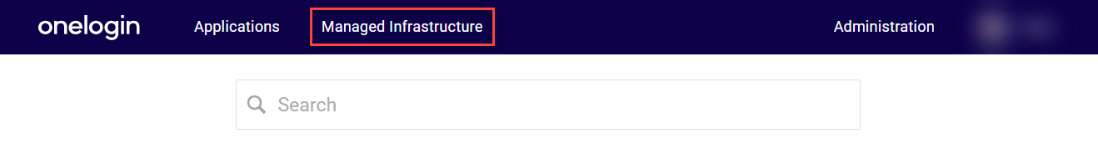

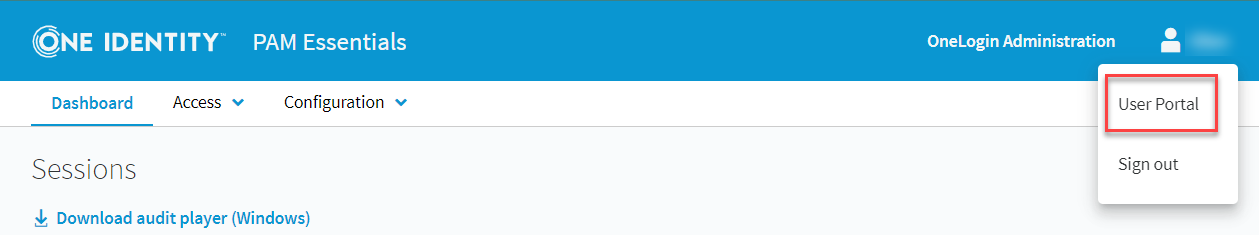

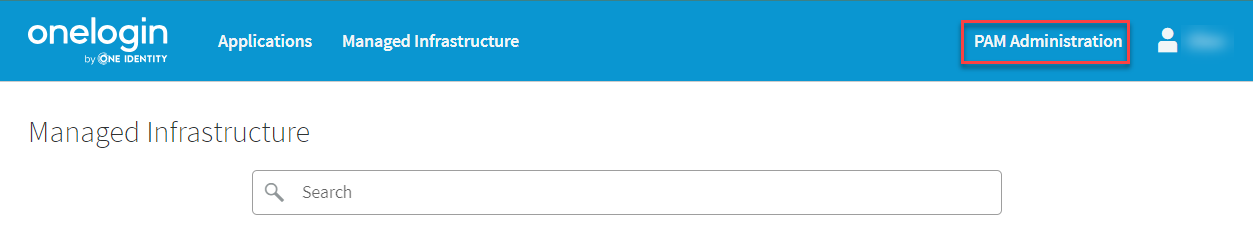

To return to the PAM Essentials portal at any time, go to Managed Infrastructure from your OneLogin user portal and select PAM Administration, or return to Modules > Privileged Access (PAM) in your OneLogin admin portal.
Granting OneLogin Users Access to PAM Essentials

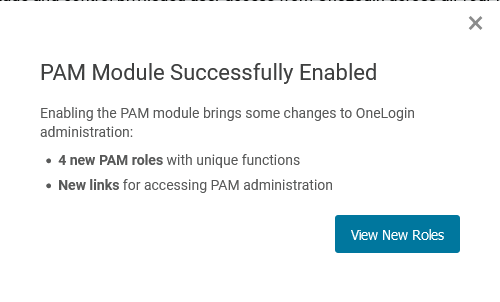

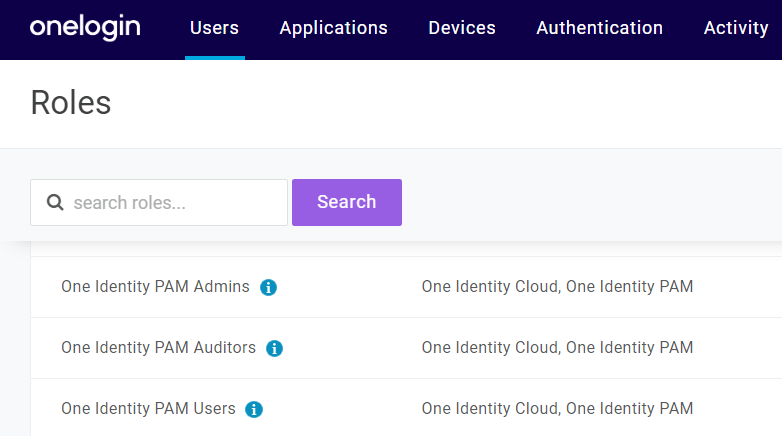

On subscribing to PAM essentials, several new user roles are automatically created in your OneLogin tenant and can be assigned to your users. Only OneLogin users assigned one of these roles are able to view the managed infrastructure portal or any privileged access tools; the OneLogin environment will remain completely unchanged for all other users.
Important: Do not delete or rename these roles for any reason, as doing so will prevent module use.
|
One Identity PAM Admins |
Assign a user this role to grant them full configuration and audit access in the PAM administration interface. Note: The user must also have Super user privileges in order to access the Modules menu in the OneLogin administration portal. |
|---|---|
|
One Identity PAM Auditors |
Assign a user this role to grant them auditing access to PAM sessions and read-only access to the PAM administration interface. Note: The user must also have Super user privileges in order to access the Modules menu in the OneLogin administration portal. |
|
One Identity PAM Users |
Assign a user this role to grant them access to the PAM user portal for launching privileged access sessions. |
Note: PAM Essentials admins and auditors are not automatically granted access to the PAM user portal for separation of duties. If a user requires access to both the PAM admin portal and the PAM user portal, they must be assigned both roles in OneLogin.
Users assigned to both the PAM Users role and a PAM Admins or PAM Auditors role can navigate between the two portals in the upper-right corner of PAM Essentials.
Connecting Isolated Networks

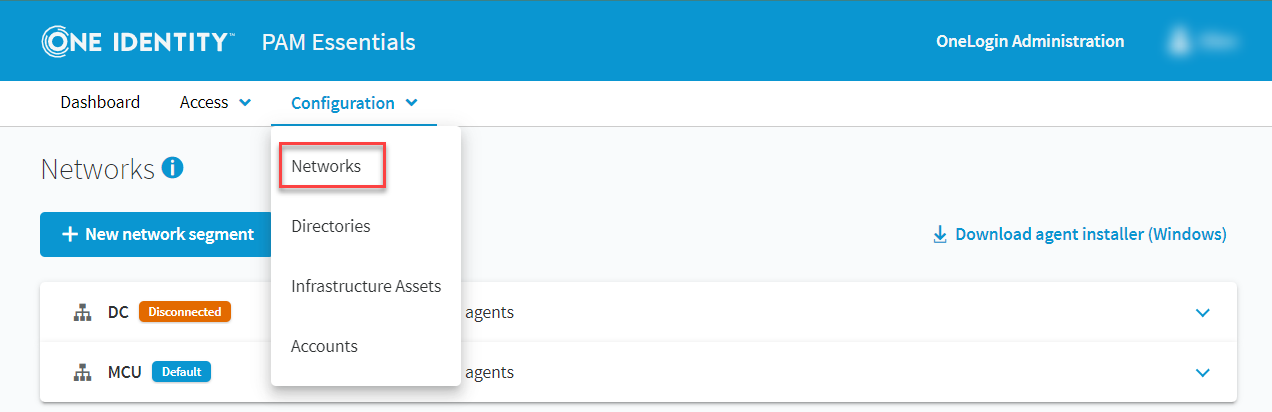

In your PAM Essentials administration portal, go to Configuration > Networks to establish secure connections between PAM Essentials and your private networks. These connections can be organized into individual network segments to optimize for location and performance.
Network Segments

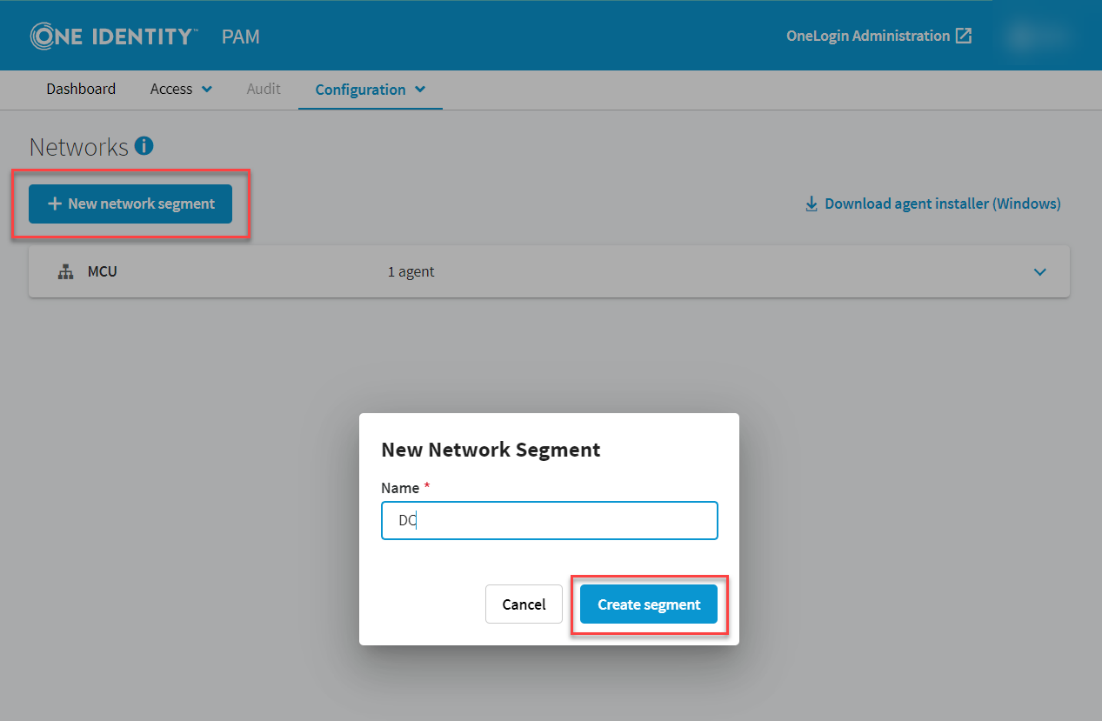

To create a network segment, click + New network segment and give the segment a unique and descriptive name, then click Create segment.
Best Practice! We recommend configuring agents for at least two computers in each of your networks, in order to provide redundancy and ensure uninterrupted connectivity in the event of server failure.

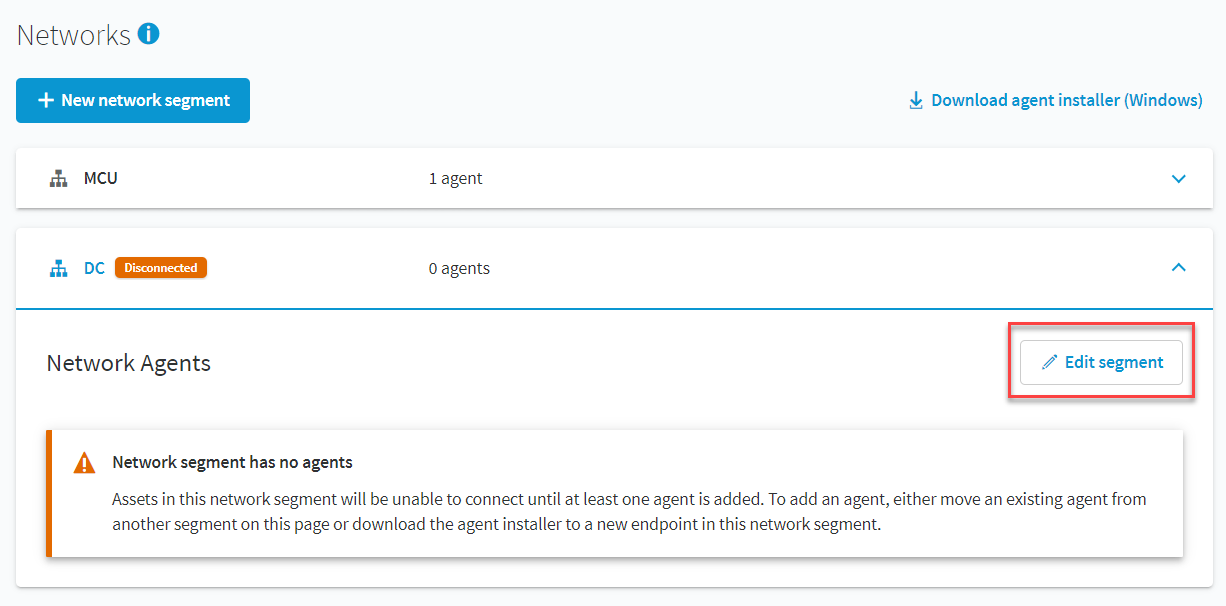

Select any segment and click Edit segment to rename or remove it.
Note: At least one network segment is required. If a network agent is installed before creating your first network segment, a segment will automatically be created for you. If you have only one segment, it cannot be deleted until another segment has been created.
Network Agents
The One Identity Network Agent is what facilitates the connection between PAM Essentials and your network. The agent must be installed on at least one computer in each of your network segments.
-

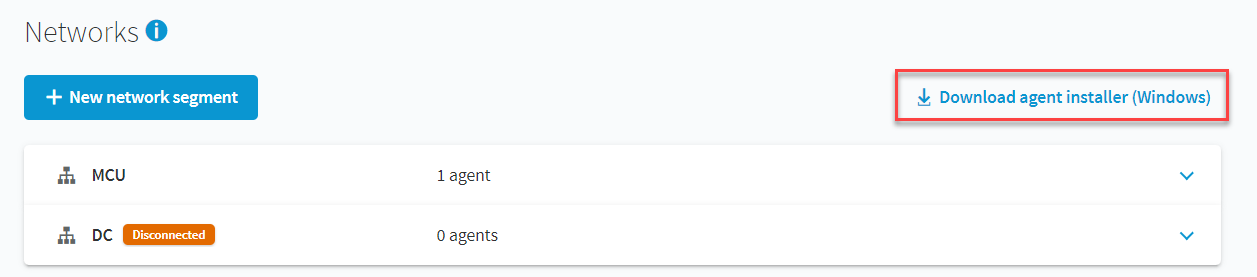

Click Download agent installer to download an installation file containing the One Identity Network Agent utility.
-
Run the installation file on at least one machine in each of your network segments. The installer can be downloaded or copied to any number of computers necessary.
-

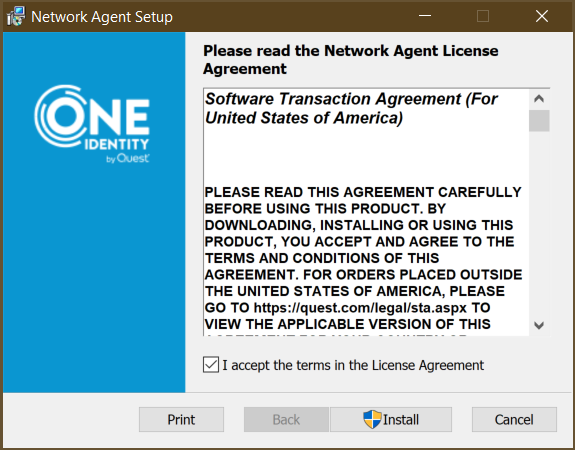

Accept the license agreement in the installation wizard and click Install. If prompted by the operating system, allow the installer to make changes to your device.
-

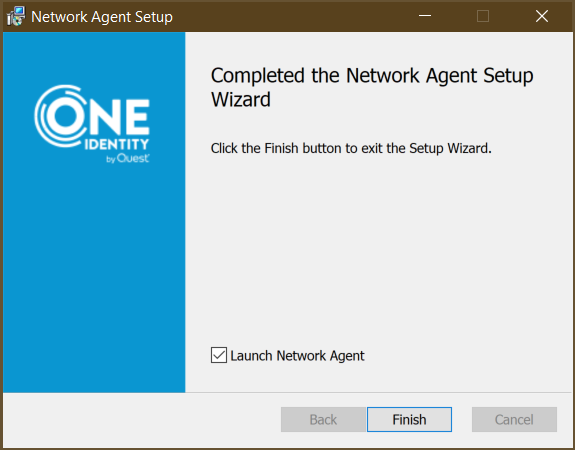

Once the installation is complete, check Launch Network Agent and Finish the installation.
-

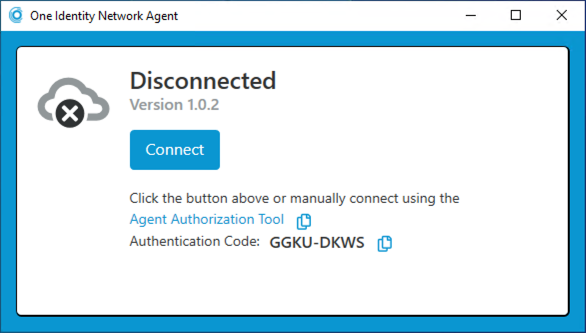

The Network Agent launches in the lower-right corner of the screen and can be accessed again from the system tray at any time. Click Connect to automatically connect the network agent to PAM Essentials.
TroubleshootingIf automatic connection fails, you may instead visit the Agent Authorization Tool linked in the network agent and manually paste in the Authentication Code when prompted.
-
Sign in with your OneLogin credentials if prompted.
Note: Do not sign in using Starling or Microsoft Entra ID.

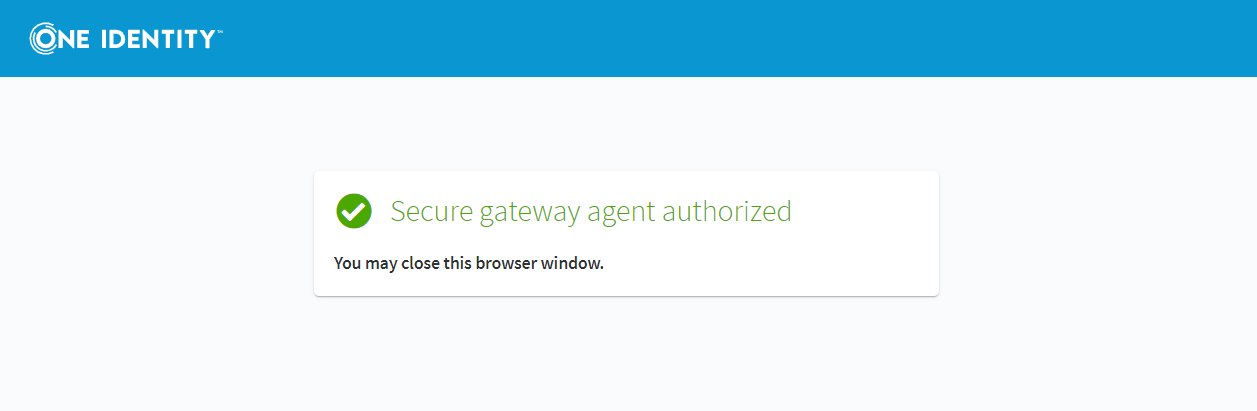

When the Secure gateway agent authorized confirmation appears, close this window and return to the Networks configuration in your PAM Essentials admin portal. You may need to refresh the configuration page before the new Network Agent appears.
-

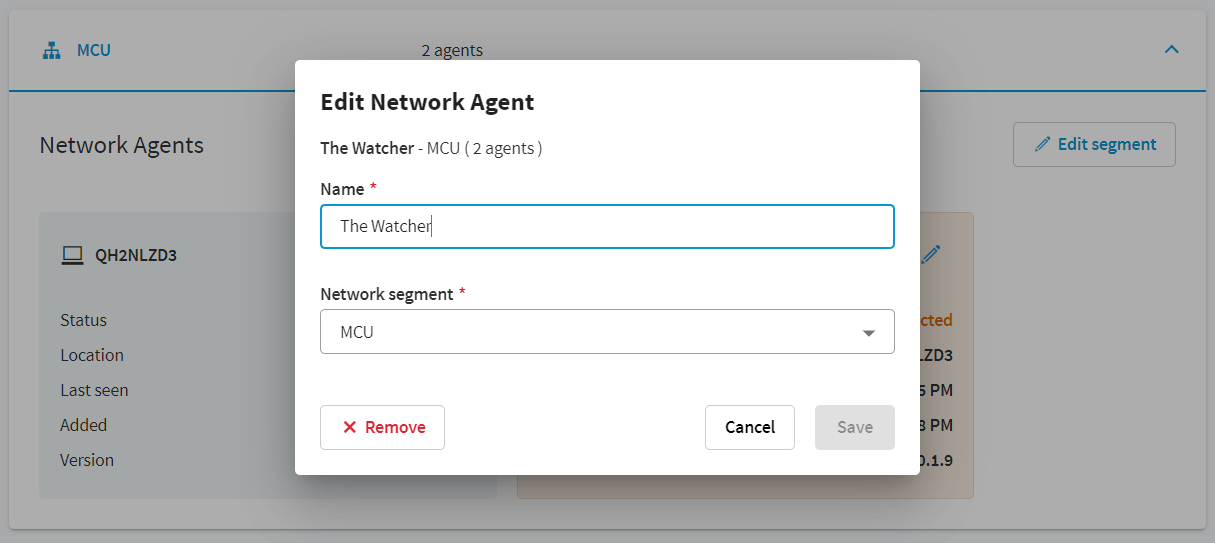

Click the pencil icon in the upper right corner of any Network Agent to rename it, remove it, or to reassign it to a different network segment.
Note: Removing a network agent from the network segment in PAM Essentials will disconnect it, but the network agent application will remain installed on the remote computer until manually uninstalled. If the agent is uninstalled without being removed from PAM Essentials, it will display disconnected in the PAM portal.
Managing Directories

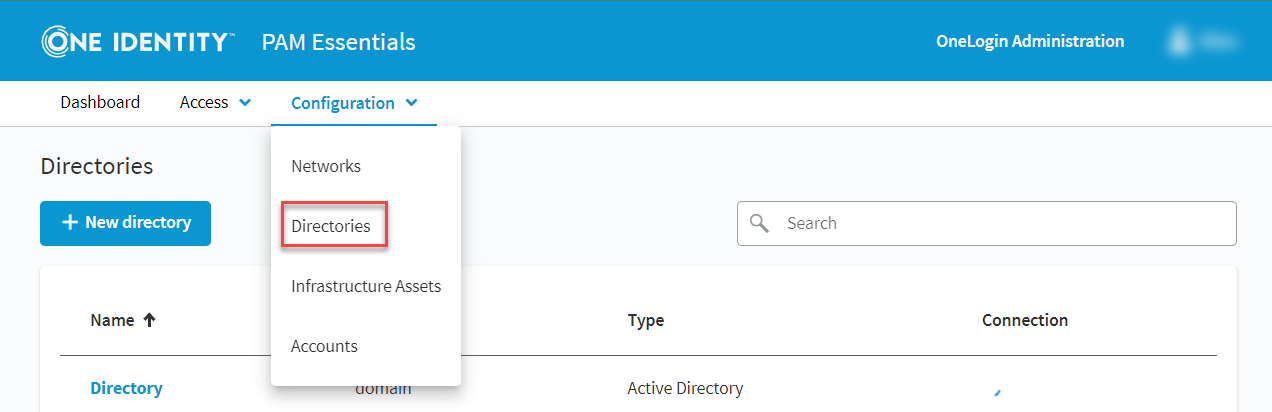

Go to Configuration > Directories to add and manage the directories associated with the network segments connected to PAM Essentials.
Note: Currently, only Active Directory is supported by PAM's directory management.
Adding a Directory

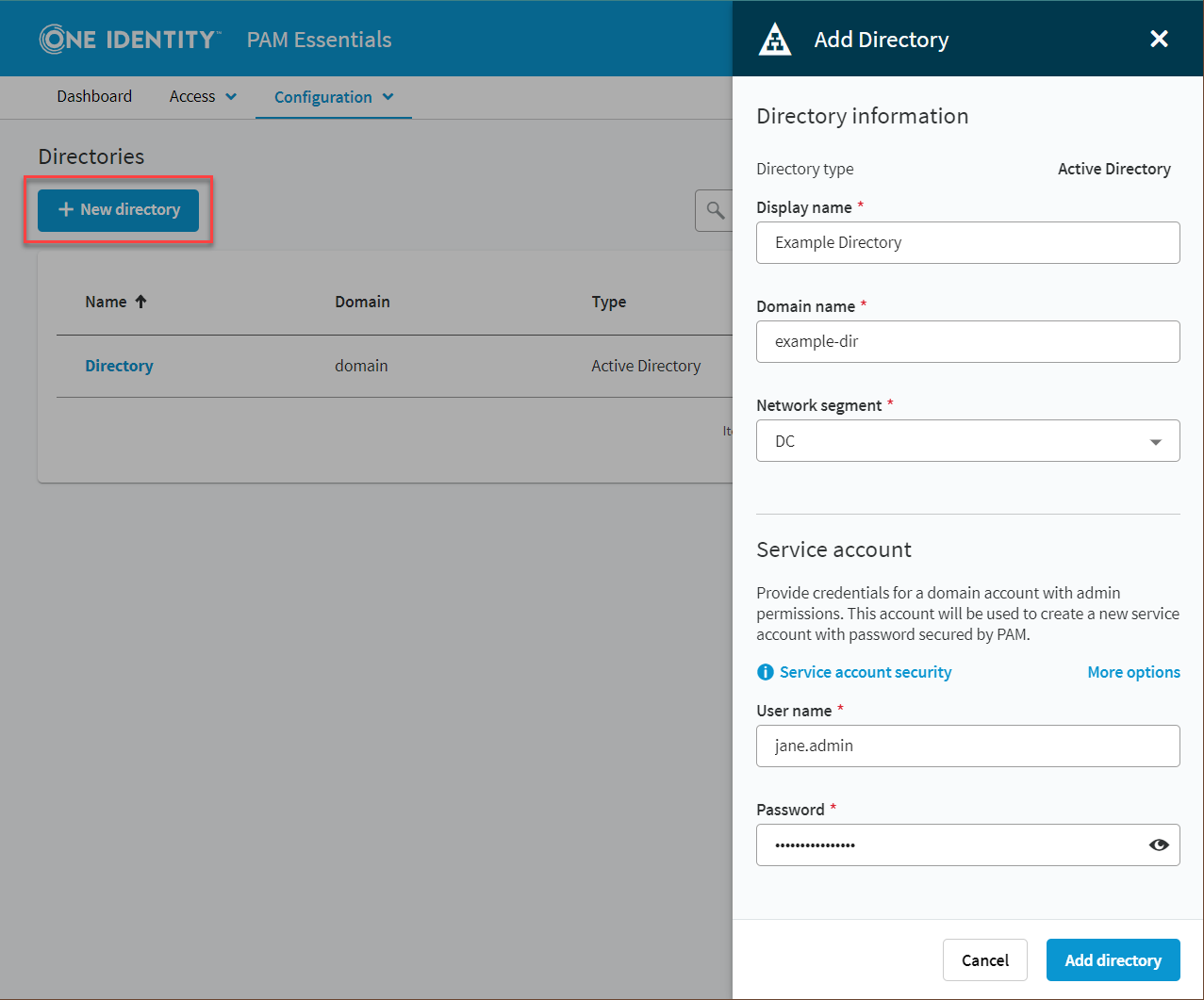

To add a directory, click + New Directory and configure the following details:
|
Display name |
Enter a unique and descriptive name for the directory. |
|---|---|
|
Domain name |
Enter the directory's domain name. |
|
Network segment |
Select the network segment containing at least one of the directory's domain controllers. |
|
Discovery |
Enable this setting to allow PAM Essentials to automatically pull data from your directory. This is required for importing assets and accounts without manual entry. |
|
Service account |
Enter the User name and Password for a domain account with administrative privileges in this directory. This account will be used to create a new service account secured by PAM. |
After clicking Add directory, the asset appears in your Directories list, where you can monitor its connection status or select it to manage its details.
Using an Existing Service Account
Important: For security reasons, this is not recommended.

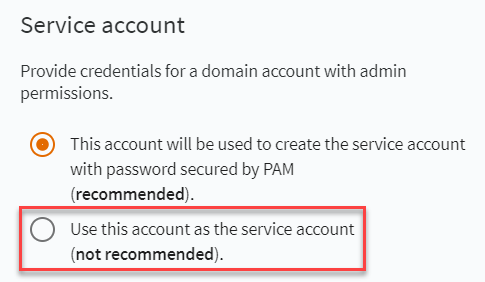

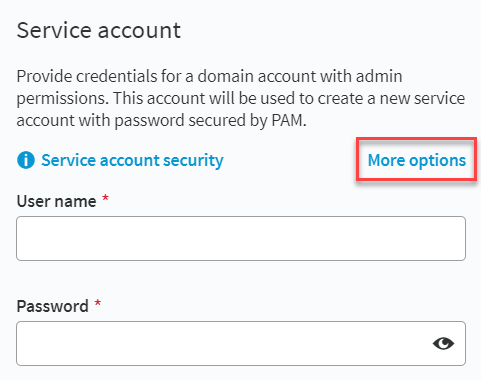

If necessary, you may connect PAM with an existing service account rather than granting it access to create and manage a new service account. To connect the account, click More options and select Use this account as the service account.
Once this is configured, PAM Essentials will immediately change the password for the admin account entered and rotate it regularly. Only PAM will have access to this account until the service account is replaced. Do not use this option with any account that your administrators require access to.
Directory Details

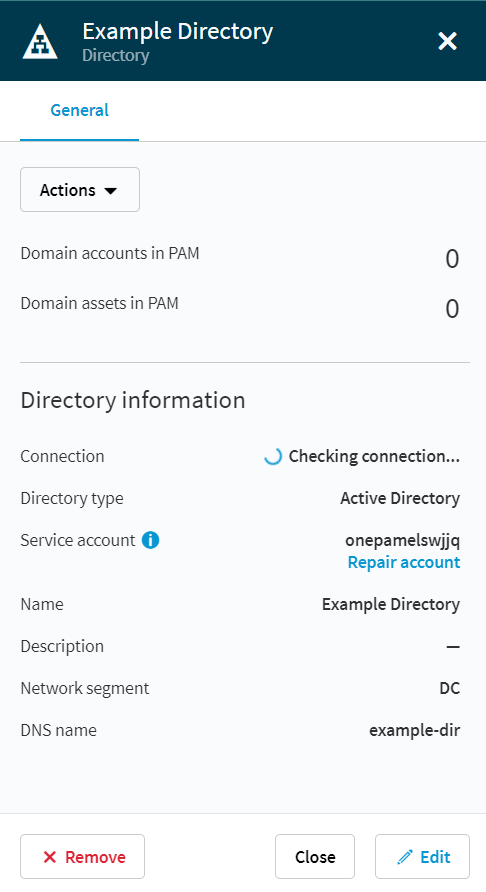

Click a directory's name to view and edit its details, check its connection status, or repair connection issues to the service account.
Open the Actions menu to perform the following actions:
|
Check connection |
Verify connectivity between PAM and the directory |
|---|---|
|
Run discovery sync |
If discovery has been enabled for this directory, sync for user and computer objects that have been modified since the last sync |
|
Add domain accounts |
Create a new privileged account using this directory |
|
Repair service account |
Enter the credentials of another admin account in the domain to allow PAM to reconnect to the domain's service account Note: This will typically be the same account used when originally configuring the directory. Do not enter the credentials for the service account itself. |
Under General, click the number of Accounts or Assets to view those related to this domain.
Click Edit to update the directory's name, domain, or network segment, and Save your changes.
Click Remove to revoke access to this asset or permanently delete it from PAM Essentials.

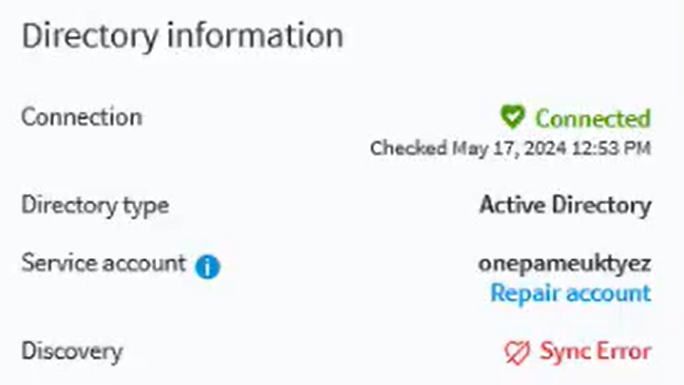

If a Sync Error displays, Discovery has been enabled for this directory, but no discovery endpoint has been found. Ensure that the directory's network segment contains at least one Network Agent updated to version 1.3.0 or higher.
Managing Infrastructure Assets

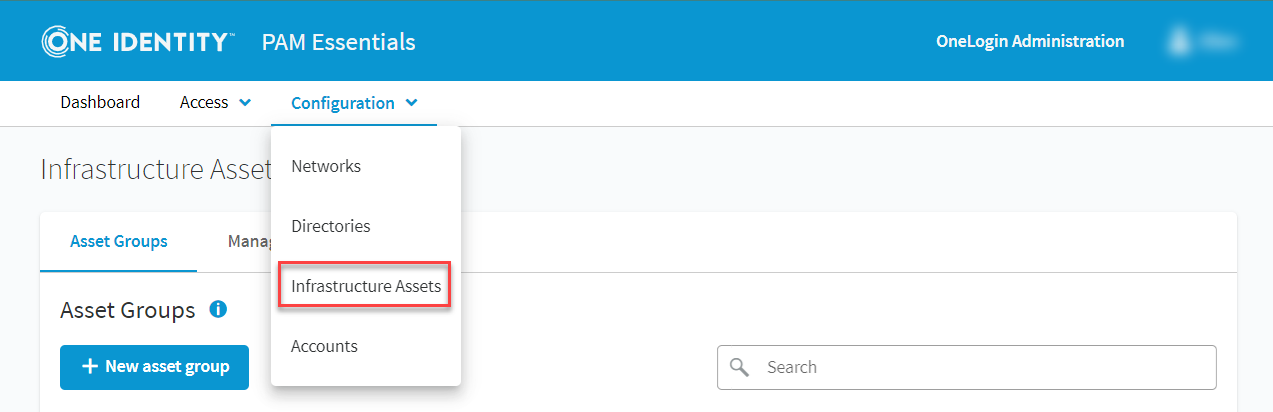

Go to Configuration > Infrastructure Assets to add and manage the assets that will be accessed by the privileged accounts you configure in the PAM portal.
Asset Groups
All managed infrastructure assets configured in PAM Essentials are organized into groups. These groups are later assigned to your privileged accounts, giving them access to a collection of their necessary resources all at once with one simple policy.

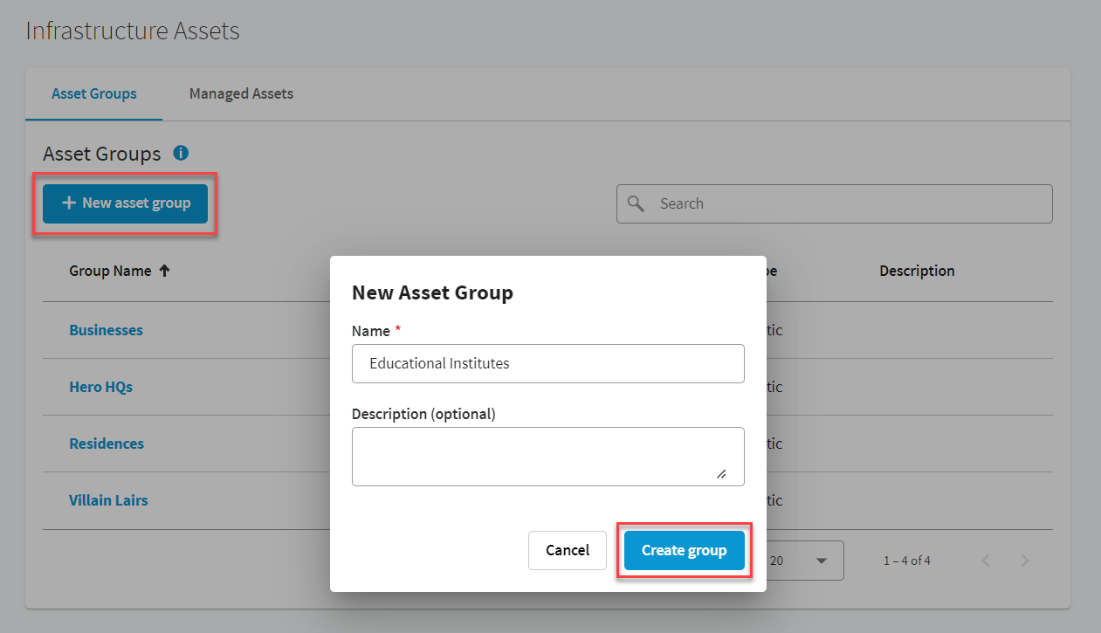

To create a group, go to Asset Groups and click + New asset group. Give the group a unique name, as well as a description if desired, then click Create group.

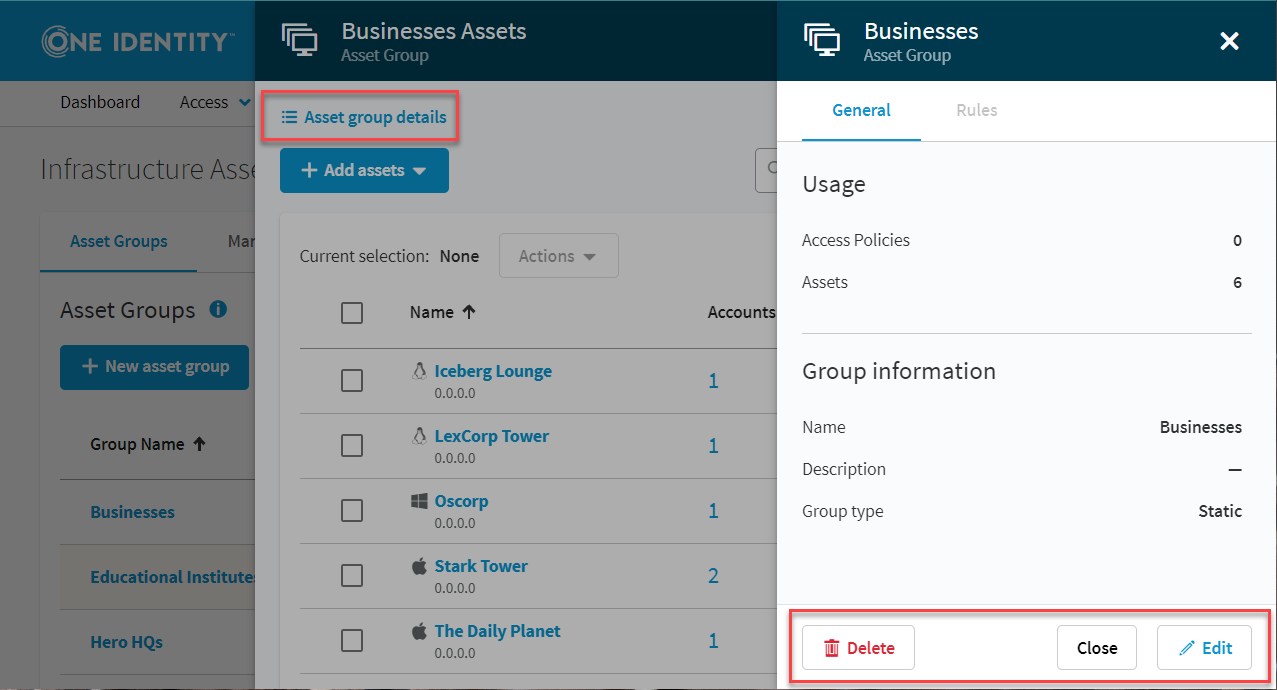

Select any group to view and manage its assets. Click Asset group details to edit or delete the group.
Warning: Deleting an asset group will not remove its assets from PAM Essentials, but will prevent them from being accessed with any policies relying on the group. Be sure to update any policies using the deleted asset group to ensure uninterrupted access to its assets.
Managed Assets
Adding an Asset
To add a new asset, go to Managed Assets and click + Add assets to PAM, then choose whether to add assets manually or import them from a directory.
Importing Assets from a Directory
Note: This feature requires a directory with Discovery enabled and at least one network agent of version 1.3.0 or higher. If the feature is unavailable or the assets you're seeking do not appear, verify your directory settings and ensure all relevant network agents have been updated.

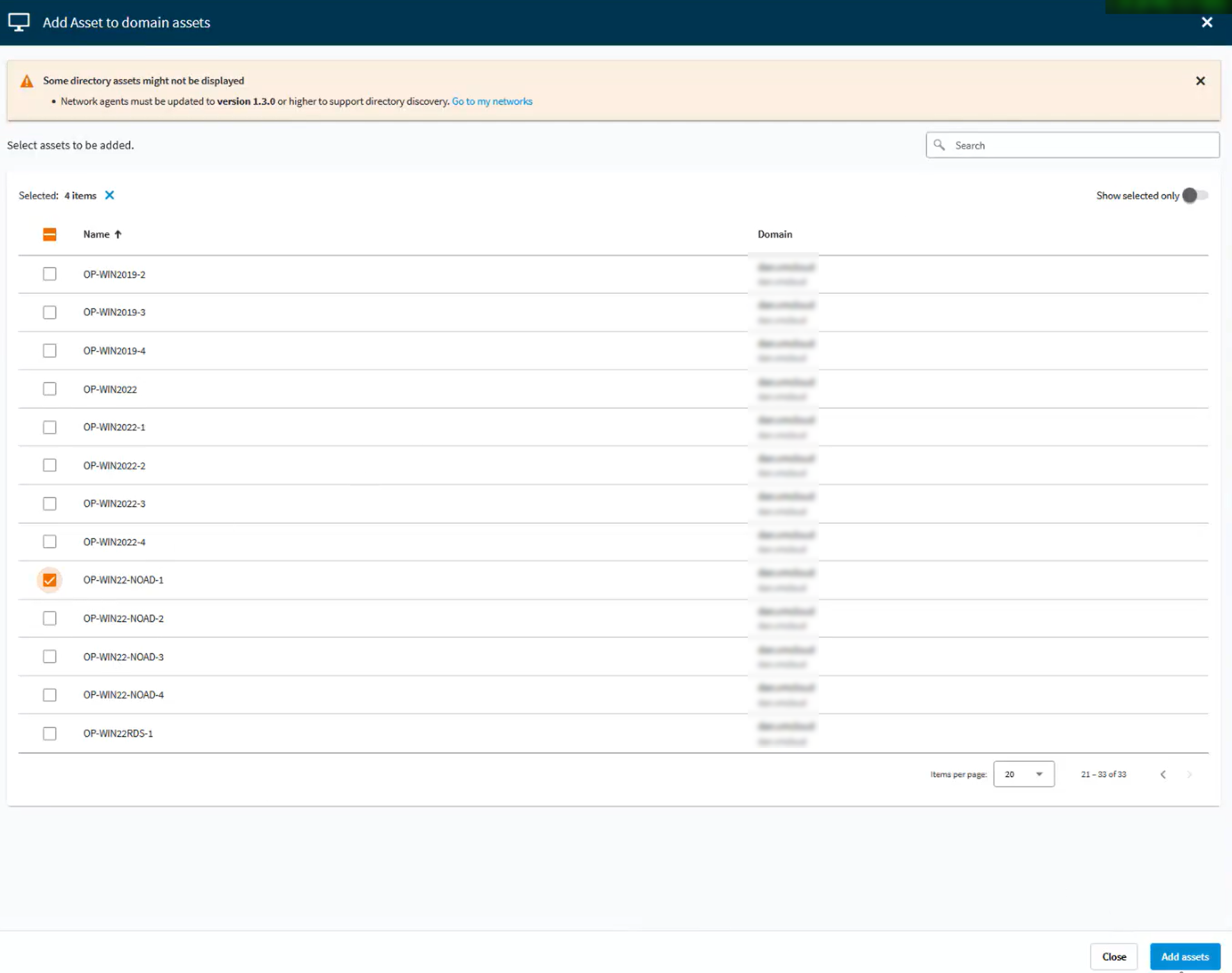

To automatically import your assets, choose Add from directory and select one or more assets from the list provided, then click Add assets.
Manually Adding an Asset

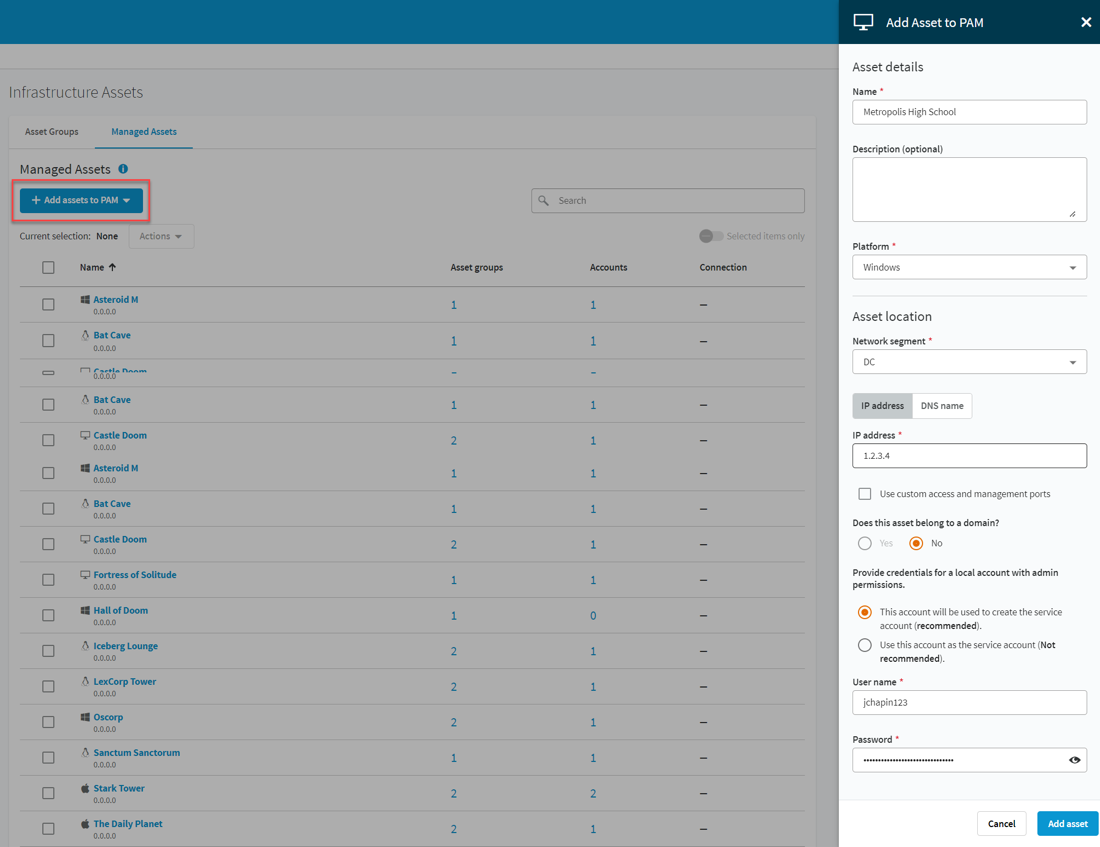

To manually add an asset, choose Add asset and configure the following details:
|
Name |
Enter a unique and descriptive name for the asset. |
|---|---|
|
Description |
If desired, provide a more detailed description of the asset's purpose or use. |
|
Platform |
Select the operating system used by the asset. |
|
Network segment |
Select the network segment where this asset is located. |
|
IP address / DNS name |
Select and enter either the DNS name or the IP address for the asset. Note: The DNS is resolved from the network agent and therefore not required to be publicly resolvable, provided that it's resolvable inside your network. |
|
Use custom access and management ports |
Enable this setting if you wish to manually assign the asset's RDP session and WinRM management ports. By default, the asset uses ports |
|
Does this asset belong to a domain? |
If the asset belongs to a domain, select Yes and choose the appropriate directory. Otherwise, leave No selected to configure this as a local asset. Note: Domain assets can be used with both local and domain accounts, but local assets may only be used with local accounts. Note: Once the asset is configured, this setting cannot be modified. If you later wish to change your selection, the asset must be fully removed and re-added. |
|
Provide credentials for a local account with admin permissions. |
If configuring a local asset, enter the administrator credentials for an existing account on the asset device. This account will be used to create a service account managed by PAM Essentials for managing the credentials of local privileged accounts. Note: If necessary, you may instead select Use this account as the service account to use your existing admin account for PAM services, rather than create a new service account. This is not recommended, particularly if the existing account is in use for any other administrative functions. Once converted to a service account, the account's password will be automatically changed, rotated regularly, and only accessible to PAM until a new service account is configured. |
After clicking Add asset, the asset appears in your Managed Assets list, where you can add it to one or more asset groups. An asset must belong to at least one group in order to assign it to an access policy.
Asset List

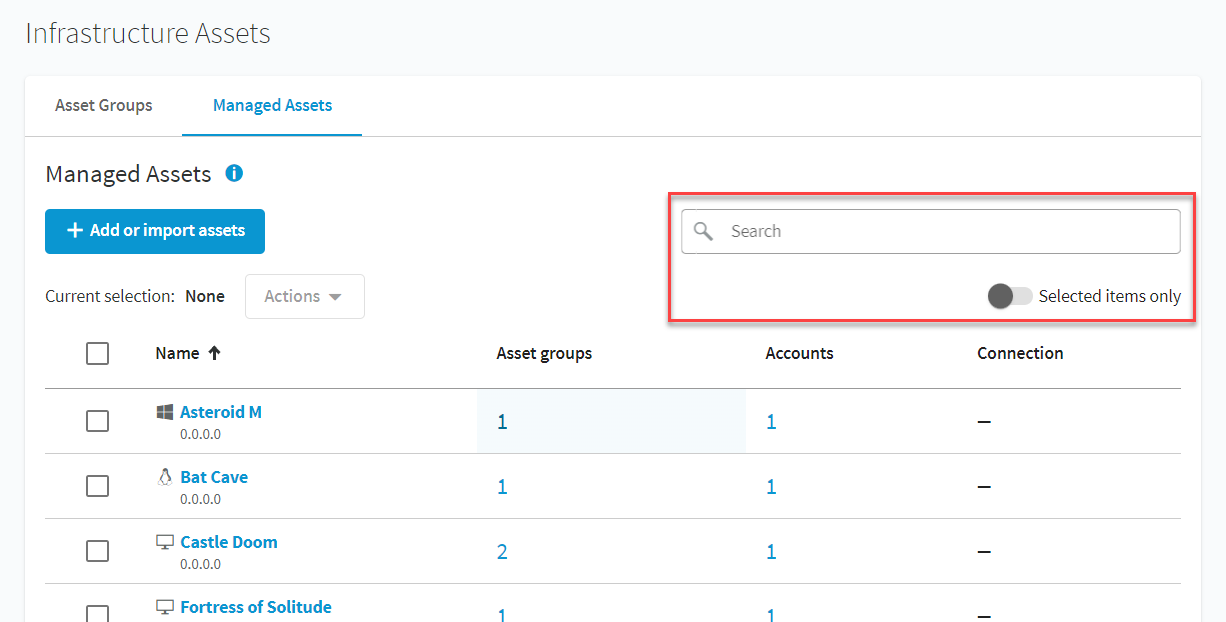

If you have a large number of assets to navigate, you can use the Search tool to filter them by name, DNS, or IP address, or the Selected items only toggle to view only those assets you've manually selected.

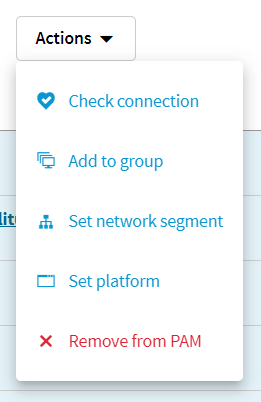

Select any number of assets, then click Actions to perform the following actions:
|
Check connection |
Verify the selected asset(s)' connection status |
|---|---|
|
Add to group |
Add the selected asset(s) to a given asset group |
|
Set network segment |
Change the network segment for the selected asset(s) |
|
Set platform |
Change the platform of the selected asset(s) |
|
Remove from PAM |
Permanently remove the selected asset(s) and any local accounts of this asset from PAM Essentials. The service account used by PAM will remain on the asset but will no longer be managed by PAM. |
Asset Details

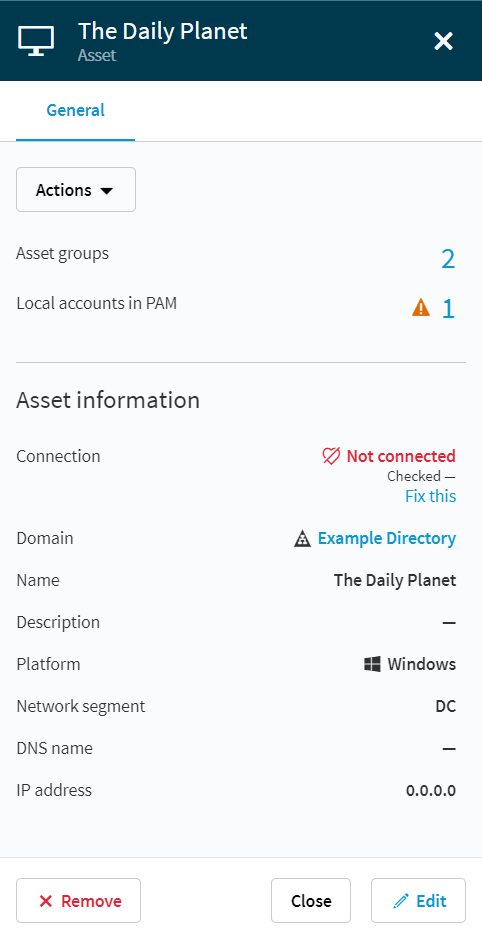

Click an asset's name to view and edit its details, or to revoke or remove the asset.
Open the Actions menu to perform the following actions:
|
Check connection |
Verify the asset's connection status |
|---|---|
|
Add to group |
Add the asset to a given asset group |
|
Add local accounts |
Create a new local privileged account using this asset as its parent asset |
Under General, click the number of Groups or Accounts to view those related to this asset.
Click Edit to update the asset's name and description, platform, network segment, or DNS information, and Save your changes.
Click Remove to permanently remove the asset from PAM Essentials.
Managing Privileged Accounts

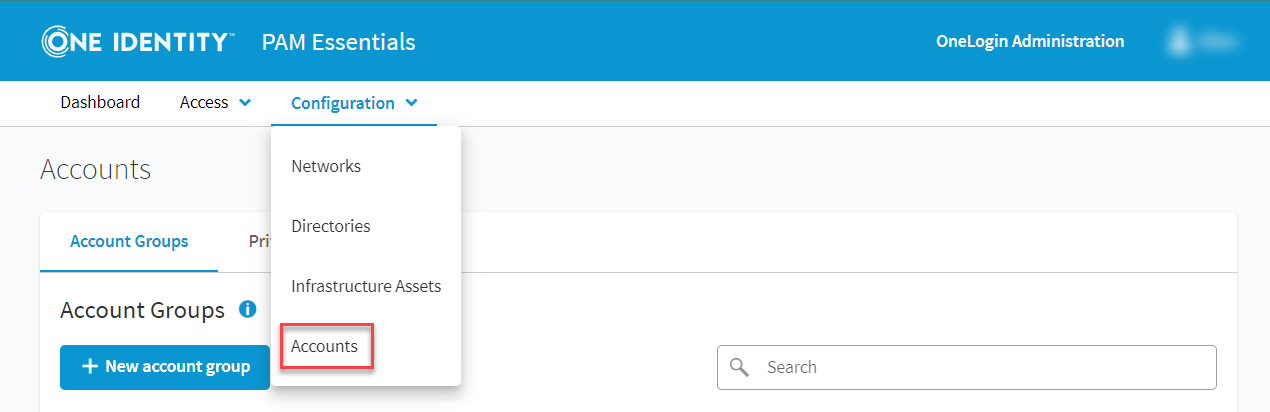

Go to Configuration > Accounts to add and manage the privileged accounts that will be granted access to the managed infrastructure assets you configure in the PAM portal.
Account Groups
Similarly to infrastructure assets, your organization's privileged accounts are collected into groups for ease of assigning access policies.

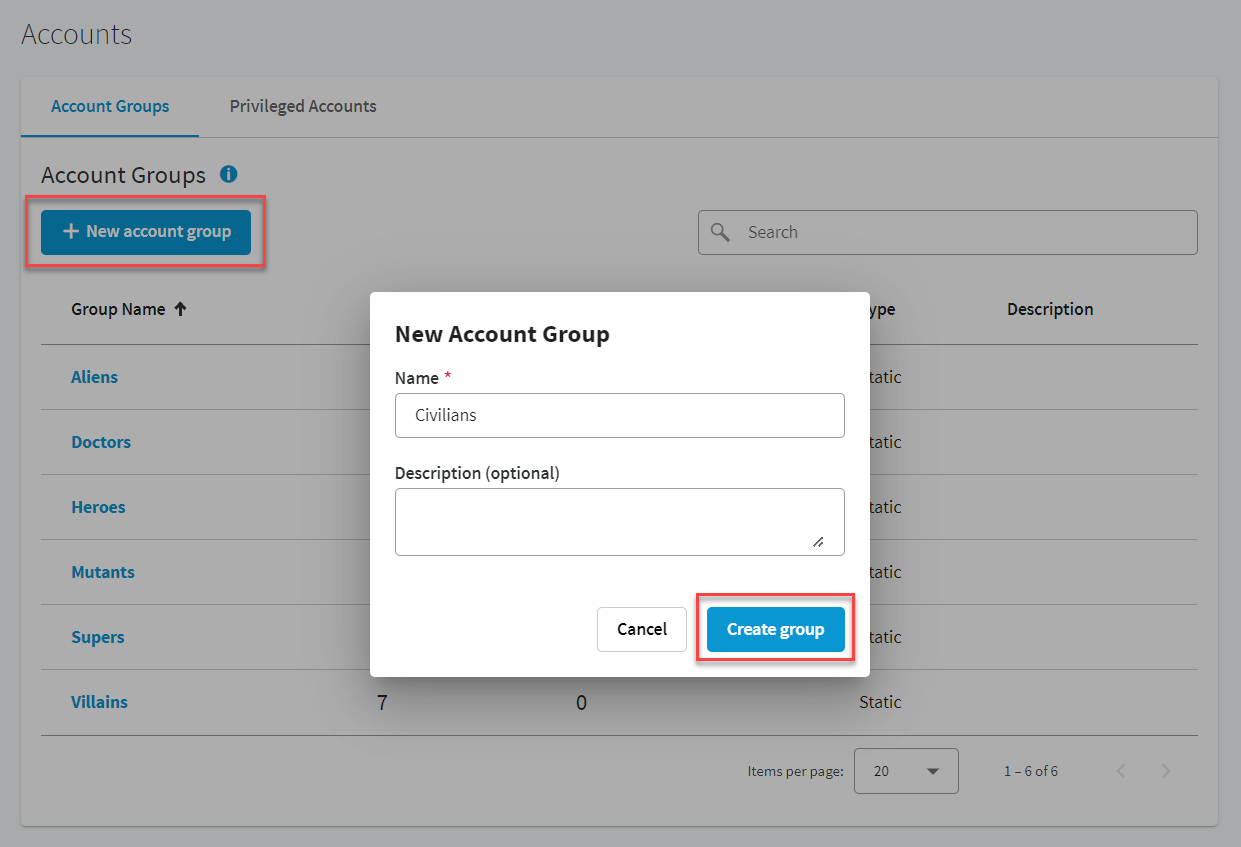

To create a group, go to Account Groups and click + New account group. Give the group a unique name, as well as a longer description if desired, then click Create group.
Best Practice! For your organization's security, assign as few accounts to each group as possible. Access to your managed infrastructure is based on account groups, so only accounts with a confirmed need for a group's assets should be granted access.

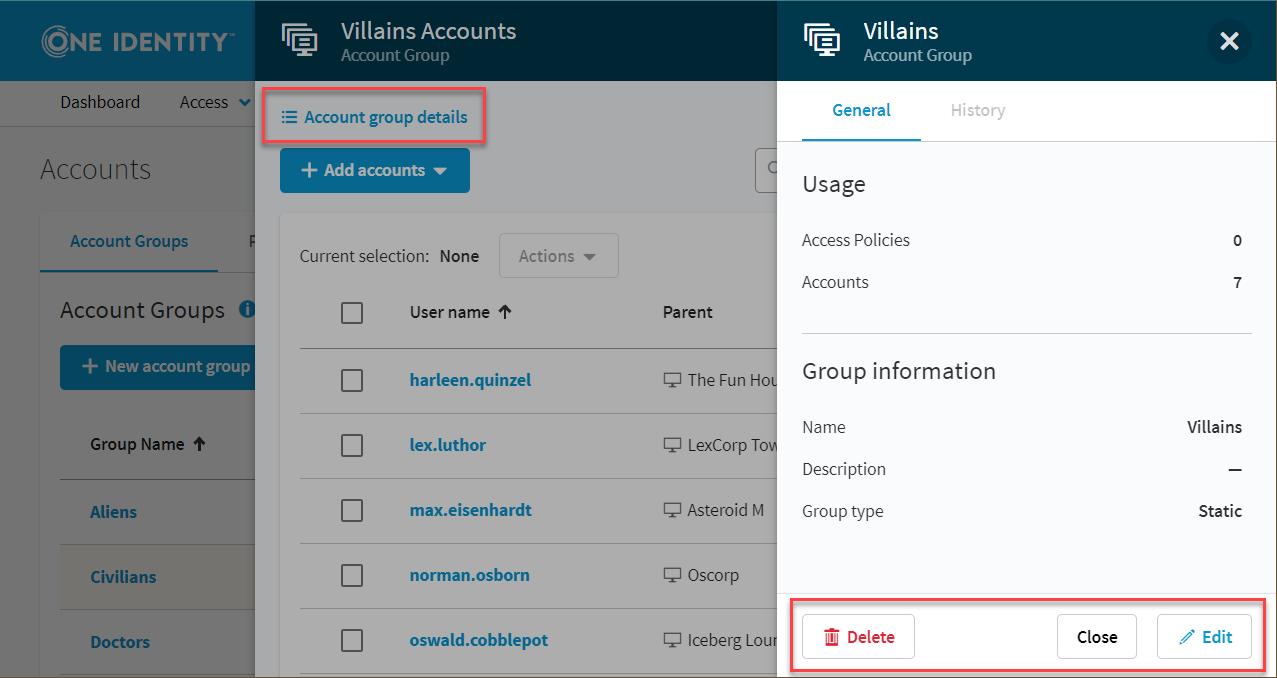

Select any group to view and manage its accounts. Click Account group details to edit or delete the group.
Warning: Deleting an account group will not remove its accounts from PAM Essentials, but they must be assigned to an account group for access to be granted in an access policy. Be sure to update any policies using the deleted account group to ensure uninterrupted access for its accounts.
Privileged Accounts
Adding an Account
To add a new account, go to Privileged Accounts and click + Add accounts to PAM, then choose whether to add accounts manually or import them from a directory.
Importing Accounts from a Directory
Note: This feature requires a directory with Discovery enabled and at least one network agent of version 1.3.0 or higher. If the feature is unavailable or the accounts you're seeking do not appear, verify your directory settings and ensure all relevant network agents have been updated.

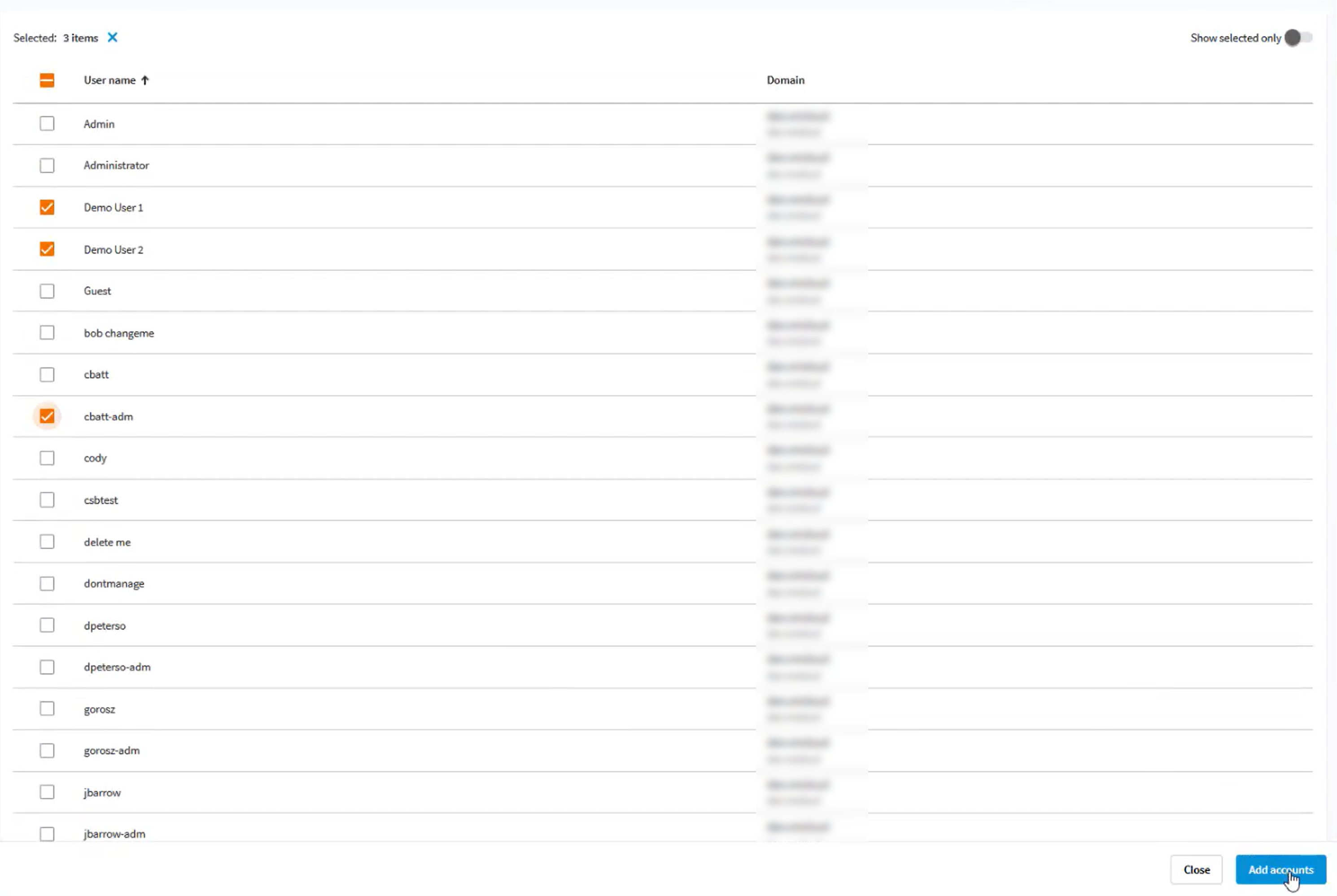

To automatically import your accounts, choose Add from directory and select one or more accounts from the list provided, then click Add accounts.
Manually Adding an Account

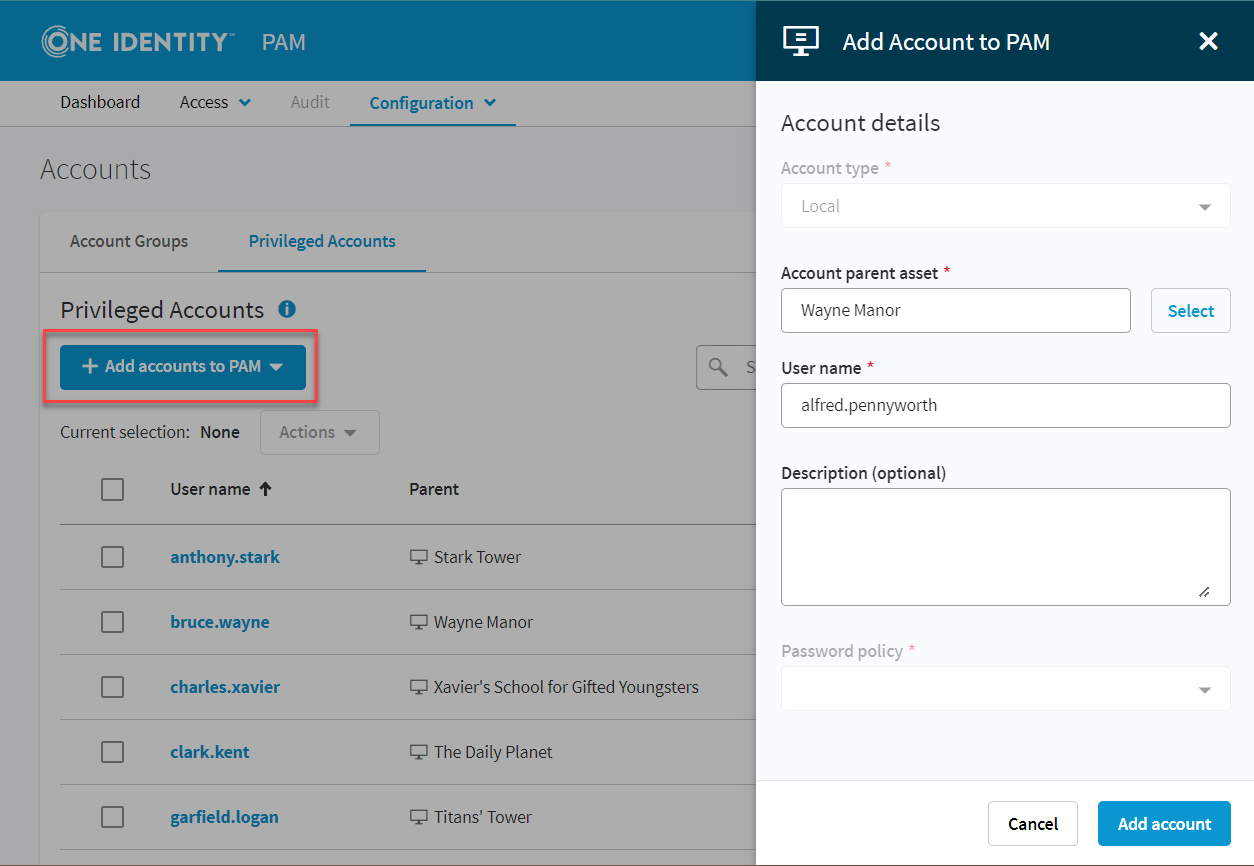

To manually add an account, choose Add account and configure the following details:
|
Account type |
Select either Local or Domain, then choose the account's parent asset or parent directory accordingly. Once the account parent is selected, additional options will appear. |
|---|---|
|
User name |
Enter the account's username. |
|
Description |
If desired, enter a description for the account. |
Click Add account to finish account creation. Unless previously disabled, a confirmation dialog verifies that you wish to Give PAM control of the account.
Note: Accounts added directly through this interface are not assigned to any given account group and therefore cannot be immediately used. To enable access to the new account, you must also assign it to a group from the accounts list.
Navigating Privileged Accounts

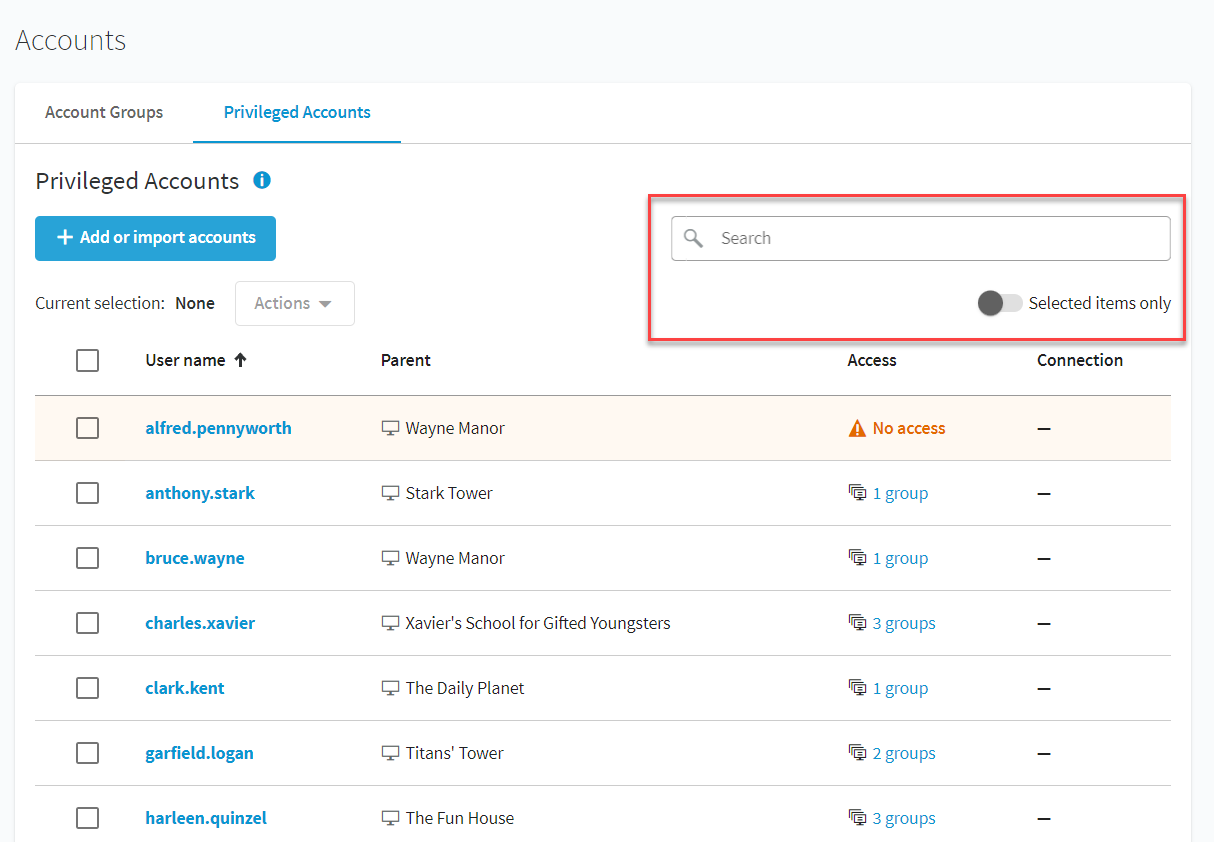

If you have a large number of accounts to navigate, you can use the Search tool to filter them by name or parent asset, or the Selected items only toggle to view only those accounts you've manually selected.

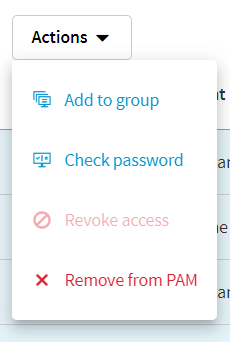

Select any number of accounts, then click Actions to perform the following actions:
|
Add to group |
Add the selected account(s) to a given account group |
|---|---|
|
Check password |
Verify/repair the selected account(s)' current password status |
|
Revoke access |
Remove the selected account(s) from all account groups. The account(s) will remain in PAM but cannot be used to access any assets. |
|
Remove from PAM |
Permanently remove the selected account(s) from PAM Essentials. |
Note: An account removed from PAM will no longer have its credentials managed by PAM. Another administrator account must be used to reset the password for use outside of PAM.
Account Details

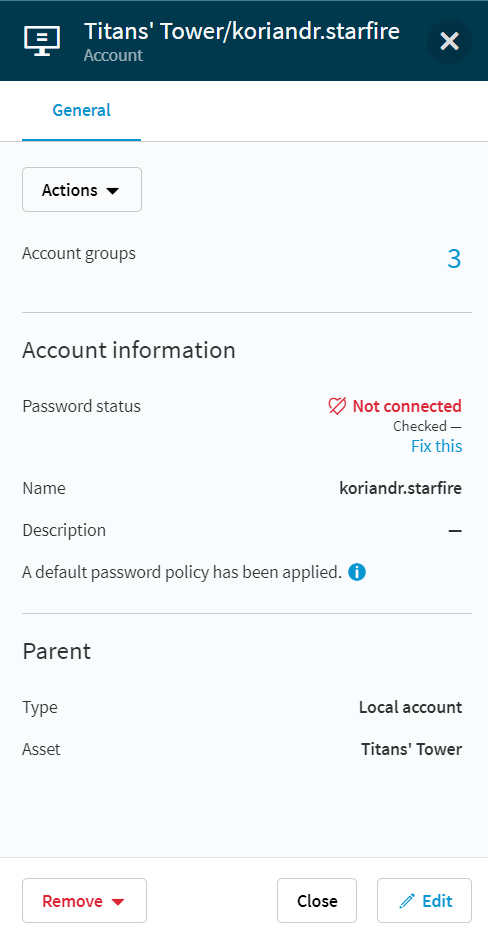

Click an account's name to view and edit its details, or to revoke or remove the account.
Open the Actions menu to perform the following actions:
|
Add to group |
Add the account to a given account group |
|---|---|
|
Check password |
Verify/repair the account's current password status |
|
Rotate password |
Manually rotate the account's password. Passwords are automatically rotated on a weekly basis and immediately following a session during which the account was used. |
|
Show password |
Display the account's current password. Warning: This option should only be used in the event of an emergency. Showing the password will result in an audit event in the history and an automatic password rotation 30 minutes after the password is revealed. |
Under General, click the number of Groups to view those assigned to this account.
Click Edit to update the account's description and Save your changes.
Click Remove to revoke access for this account or permanently remove it from PAM Essentials.
Assigning Access Policies

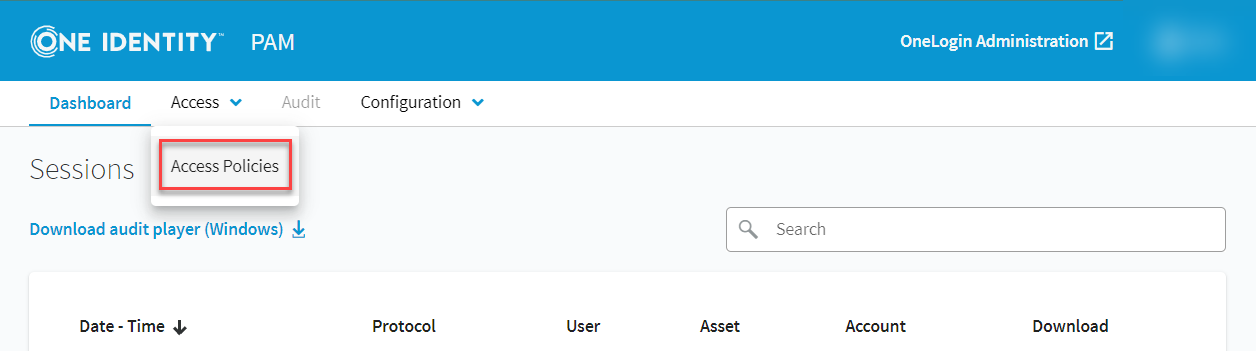

Go to Access > Access Policies to manage and assign the policies that allow your account groups to access the asset groups that you've configured.

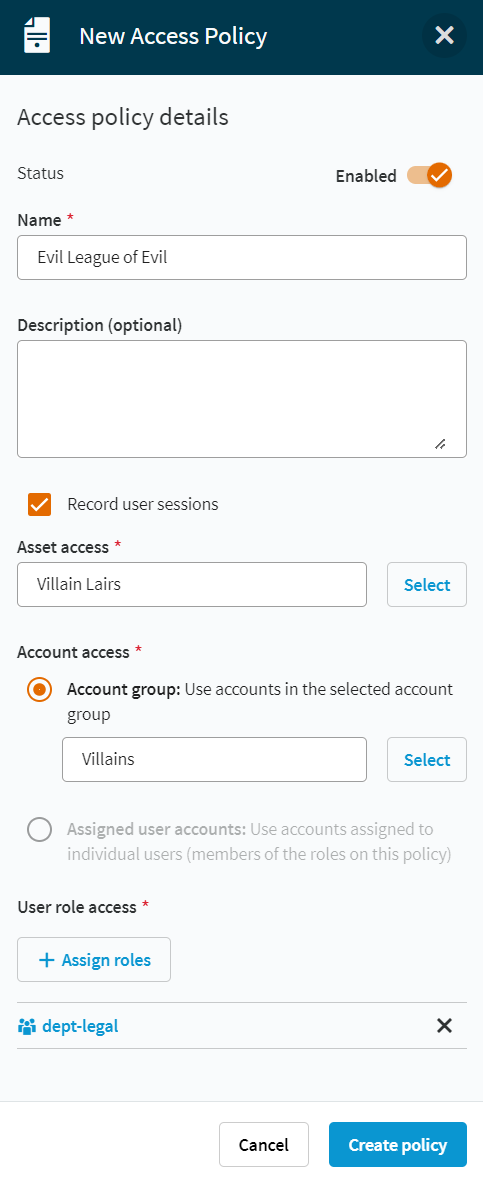

To create a policy, click + New access policy and configure the following details:
|
Status |
Leave toggled on to enable the new policy immediately, or toggle off to leave the policy disabled at time of creation. |
|---|---|
|
Name |
Give the policy a unique and descriptive name. |
|
Description |
If desired, enter a detailed description for the policy. |
|
Record user sessions |
Leave enabled to save recordings of all user sessions enabled by this policy for future auditing. |
|
Asset access |
Select the asset groups that accounts assigned this policy may access. |
|
Account access |
Select the account group containing the accounts who may access this policy's assets. |
|
User role access |
Select one or more OneLogin roles. Users who have been assigned at least one of these roles in OneLogin will see the assets and accounts assigned by this policy, provided that they have access to the PAM user portal and that the accounts assigned are compatible with the assets assigned. |
Click Create policy to add the access policy to PAM Essentials.

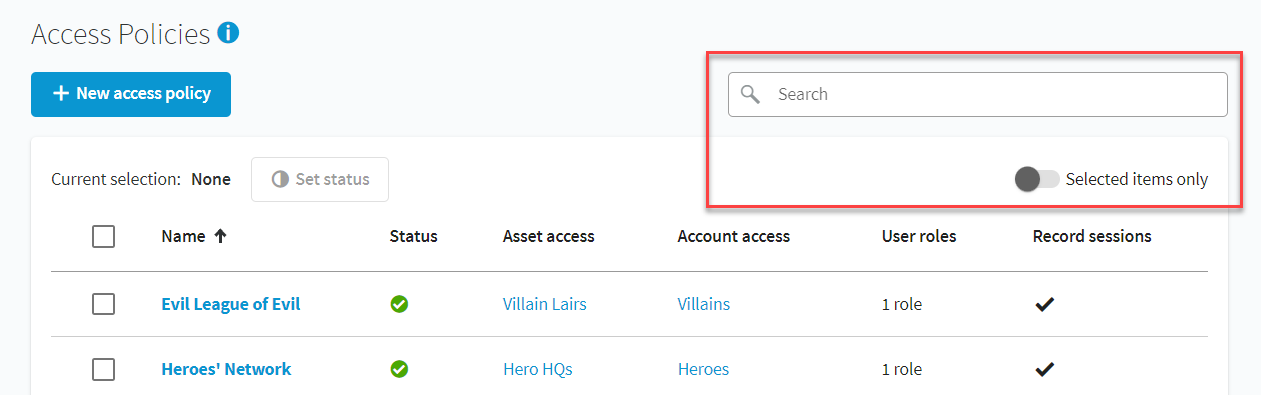

If you have many policies to navigate, you can use the Search tool to filter them by name, or the Selected items only toggle to view only those policies you've manually selected.

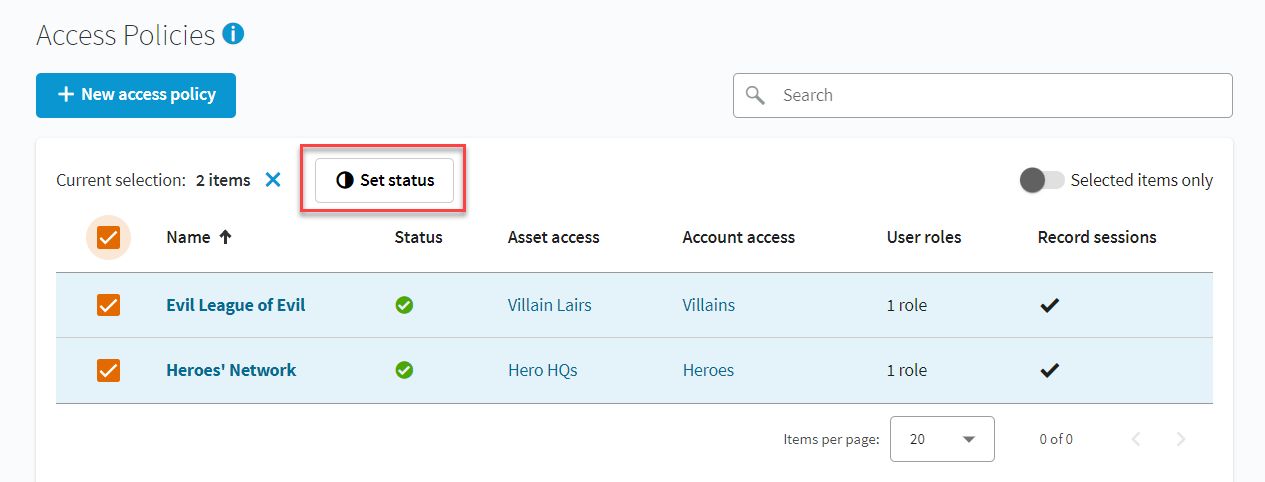

To quickly enable or disable multiple policies at once, select them and click Set status.

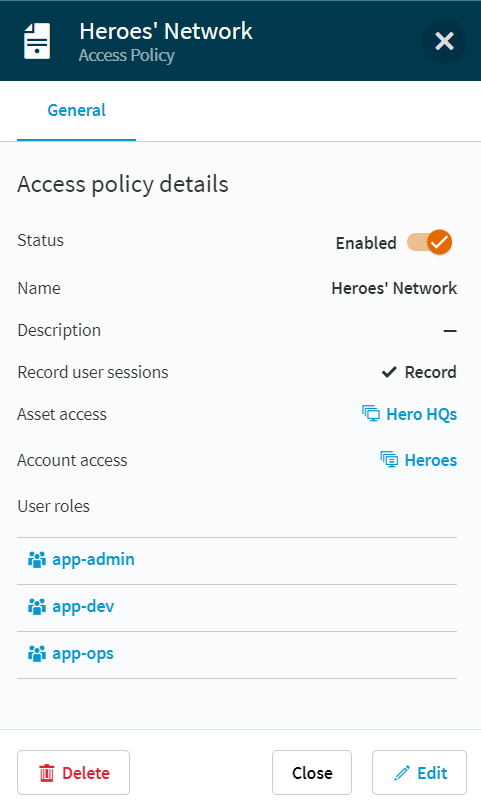

Click an access policy's name to enable or disable, edit, or remove it.
While the policy is enabled, users who have been assigned one or more of the selected OneLogin roles will have access to the selected assets and accounts via the PAM user portal.
If Record user sessions is enabled for the policy, assigned auditors and admins may view the session recordings in PAM Essentials.
Note: Policies are automatically disabled if their asset group or account group is deleted, rendering the policy invalid. An administrator must update the policy with valid asset and account groups before re-enabling.
